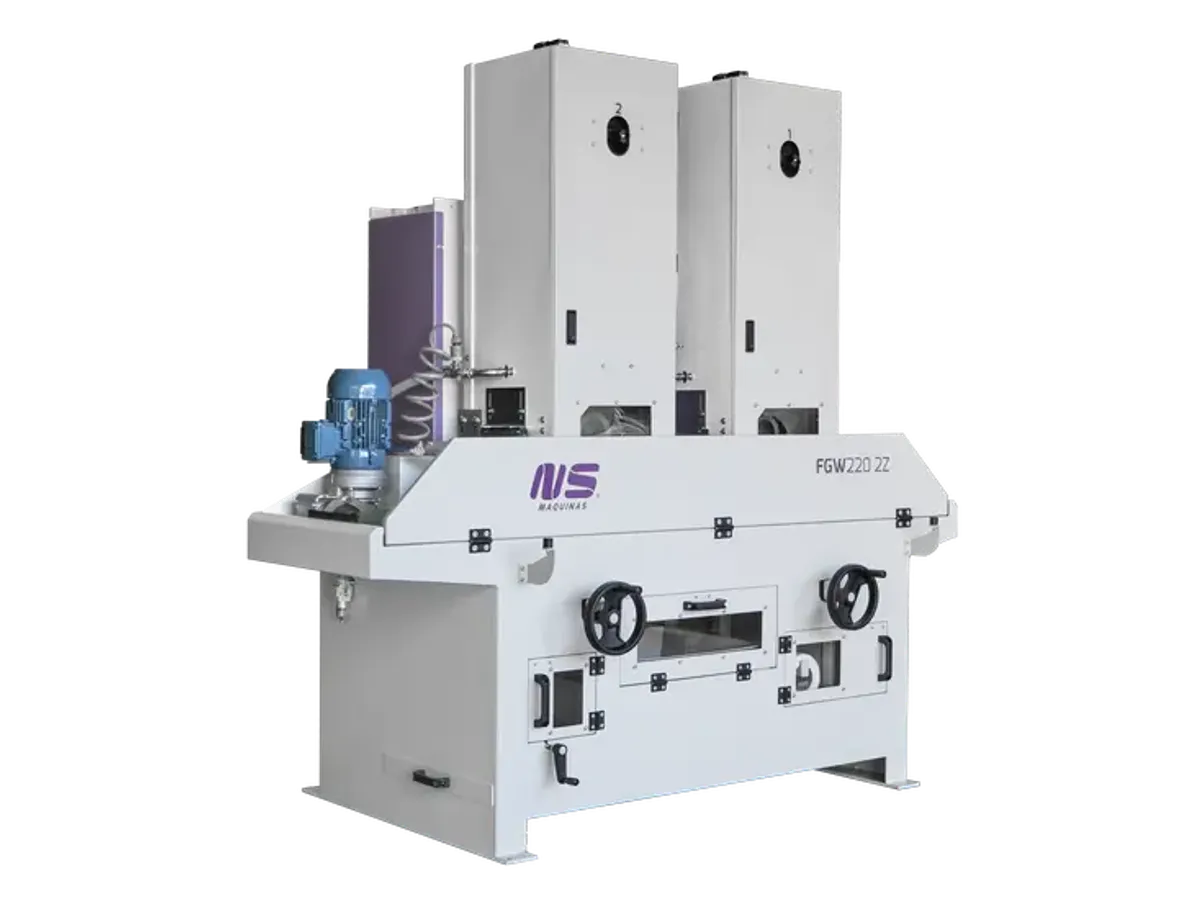

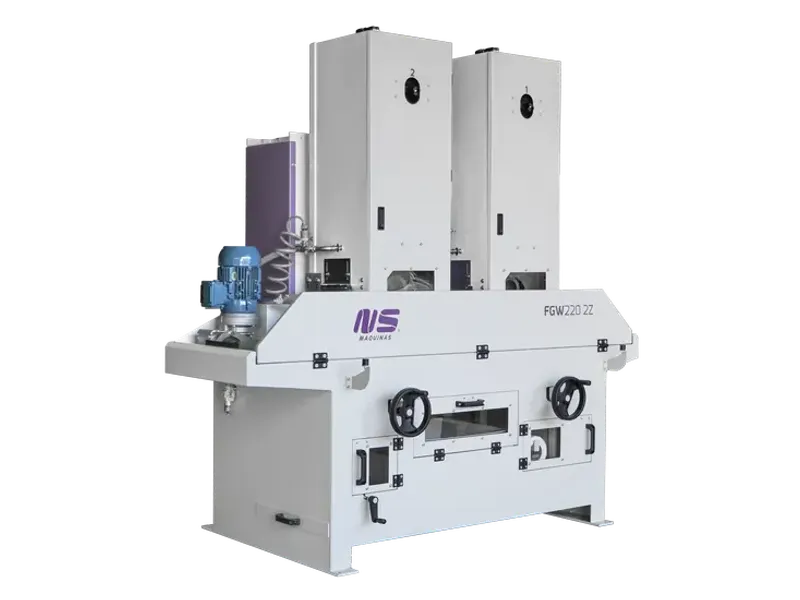

The FGW220 flat surface and square tube polishing machines are specialized equipment designed for surface finishing with water cooling to polish bars, rectangular tubes, and flat surfaces of diverse shapes. These machines enable the work up to 220 mm in width with multiple combinations of abrasive belt heads. The wet cooling system reduces the heat on the surface of the material and removes the dust from the polishing area. The dust is filtered from the water which operates in a closed circuit. Technical details: - Working capacity (Ø mm): 220×200 - No. belt stations (Z): 2–3 - No. brush stations (K): 0–2 - Abrasive belt dimensions (mm): 220×2200 - Abrasive brush dimensions (mm): 220×Ø200 - Abrasive belt speed (m/s): 20 - Abrasive brush speed (m/s): 15 - Feeding speed (m/m): 6+12 - Abrasive belt motor (kW): (x2) 5.5 (x3) 5.5 - Abrasive brush motor per head (kW): 4 - Feeding motor (kW): 0.75 - Total power (kW): 12–17.75 - Consumption (A): 25–34 - Dimensions (mm): 2100×1350×2100 (2750×1520×2100) - Weight (kg): 1430–2100 The FGW220 offers a constant working height, manual and automatic filtration systems, and an air blower to remove water drops from the material.
